Schneirographs

class: split-square2, dark

.column.right[
.vmiddle[

# Schneirographs

## Three Numbers & One Equation

## by W. Joel Schneider

]
]

.column.p-4[

<img src="tintedrainbow.svg" type="image/svg+xml">

]

---
class: split-square2, dark

.fixed-bottom.left.p-4.w-1.light[Press `f` on your keyboard to see in full screen mode. Press `o` to see an overview of all the slides. To see the code that generated each spirograph, press `p`. Other commands can be seen by pressing `h` for help.]

.column.light[
.vmiddle.center[
# Welcome,
# Everyone!
]
]

.column[

<img src="viridis_weave.svg" type="image/svg+xml">

]

???

```r
library(spiro)
library(tidyverse)
library(LaCroixColoR)
library(scico)
library(dutchmasters)
library(ochRe)
library(scales)

myfont <- "Cormorant"
bg_light <- "#f0f2f5"
bg_dark <- "#282829"

spiro(
  fixed_radius = 1231,
  cycling_radius = 529,
  pen_radius = 1233,
  colors = viridis::viridis(67),
  color_groups = 67,
  color_cycles = 59,
  windings = 96,
  points_per_polygon = 50,
  file = "viridis_weave.svg"
) %>%
  add_background(color = bg_dark)
```

---
class: middle, left, split-three

.column.font2.p-2.light[.vmiddle.center[
As a kid,
I *loved* making
spirographs.
I still do.
]]

.column.font2.p-2.dark[.vmiddle.center[
Making them
feels more like
discovery
than creativity,
like finding
hidden wings
in the
Mathematical
Museum of Art.
]]

.column.font2.p-2.light[.vmiddle.center[
I have not yet
found the point
where spirographs
do not surprise me.
]
]
---
class: split-square2

.column.dark[
.vmiddle.p-4[
  The surprising variety of forms generated by spirographs are manifestations of just one equation, the [circular path troichoid](https://www.wikiwand.com/en/Hypotrochoid). The shape of the spirograph depends on the radius of a fixed circle, radius of a cycling circle, and the distance of the pen from the center of the the cycling circle.

$$
`\begin{align}
x (\theta) &= (R - r)\cos\theta + d\cos\left({R - r \over r}\theta\right)\\
y (\theta) &= (R - r)\sin\theta - d\sin\left({R - r \over r}\theta\right)
\end{align}`
$$

* *R* is the radius of the fixed circle
* *r* is the radius of the cycling circle
* *d* is the distance of the pen from the center of the cycling circle
* *&theta;* is the number of radians the cycling circle travels around the fixed circle
* *x*(*&theta;*) is the position of *x* after the cycling circle travels *&theta;* radians
* *y*(*&theta;*) is the position of *y* after the cycling circle travels *&theta;* radians

]
]
.column[

<img src="spiro_parameters.svg" type="image/svg+xml">

???

```r
cycling_radius <- 1
fixed_radius <- 3
pen_radius <- 2

d_circle <- tibble(
  x0 = c(0, fixed_radius - cycling_radius),
  y0 = c(0, 0),
  radius = c(fixed_radius, cycling_radius),
  r_y = c(0, 0),
  r_x = c(-fixed_radius / 2, fixed_radius - 1.5 * cycling_radius),
  r_lab = c("Fixed\nRadius", "Cycling\nRadius"),
  color = c("black", "royalblue")
)

d_segment <- tibble(
  x = c(0, fixed_radius - cycling_radius, fixed_radius - cycling_radius),
  y = c(0, 0, 0),
  xend = c(-fixed_radius + 0.04, fixed_radius - cycling_radius * 2 + 0.04, fixed_radius - cycling_radius + pen_radius - 0.04),
  yend = c(0, 0, 0),
  color = c("black", "royalblue", "firebrick")
)

ggplot(data = d_circle) +
  theme_void() +
  ggforce::geom_circle(
    aes(
      x0 = x0,
      y0 = y0,
      r = radius,
      color = color),
    n = 1000) +
  coord_equal() +
  geom_text(
    aes(
      x = r_x,
      y = r_y,
      label = r_lab,
      color = color),
    family = myfont,
    vjust = 0.5,
    nudge_y = 0.015,
    angle = 0) +
  annotate(
    x = fixed_radius - cycling_radius + pen_radius / 2,
    y = 0.015,
    geom = "label",
    family = myfont,
    color = "firebrick",
    label = "Pen\nDistance",
    label.size = 0,
    label.padding = unit(3, "pt")) +
  geom_segment(
    data = d_segment,
    aes(x = x, y = y, xend = xend, yend = yend, color = color),
    geom = "segment",
    linejoin = "mitre",
    arrow = arrow(
      length = unit(0.025, "npc"),
      type = "closed",
      angle = 15)) +
  annotate(
    x = fixed_radius - cycling_radius,
    y = 0,
    geom = "point",
    color = "royalblue") +
  scale_color_identity() +
  theme(legend.position = "none", plot.background = element_rect(colour = "#f0f2f5"))

ggsave("spiro_parameters.svg", width = 7, height = 7)
```

]

---
class: split-square1, dark

.column.bg-white[
![](animation_spiro.gif)
]

.column.dark[
.vmiddle.font2.p-5[

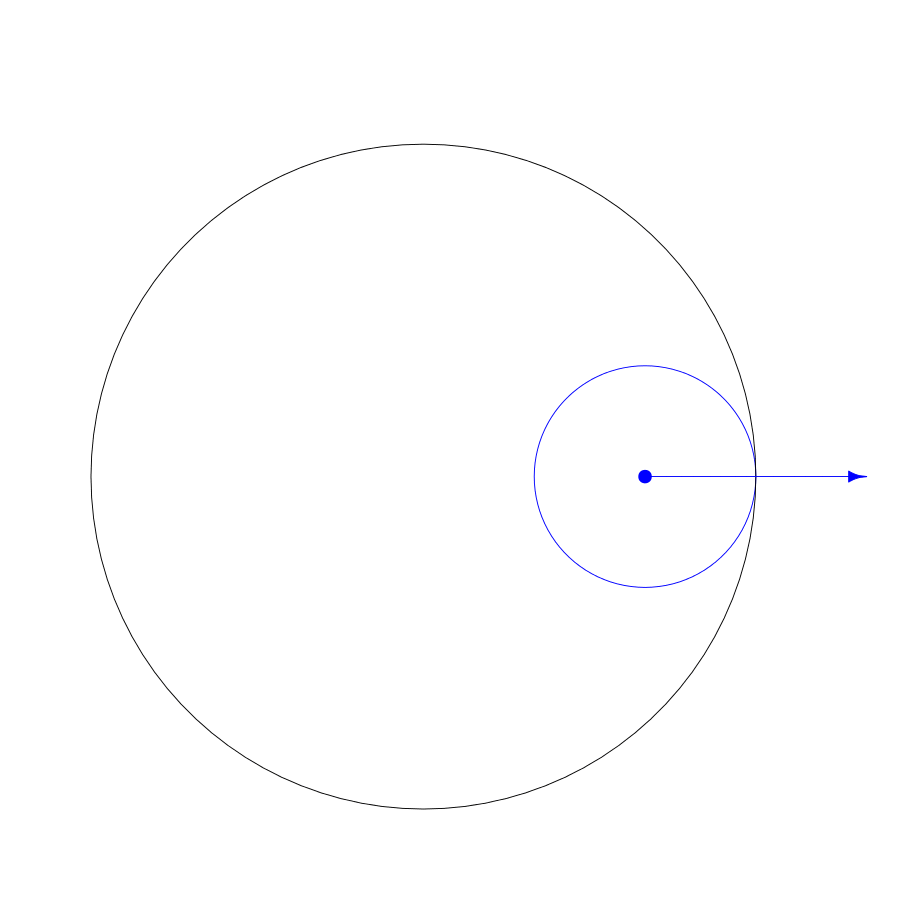

In this spirograph,<br>the fixed radius *R* is 3,<br>the cycling radius *r* is 1,<br>and the pen radius *d* is 2.

]
]

---
class: split-square2

.column.dark[
.vmiddle.font2.p-5.pr-0.m-2[

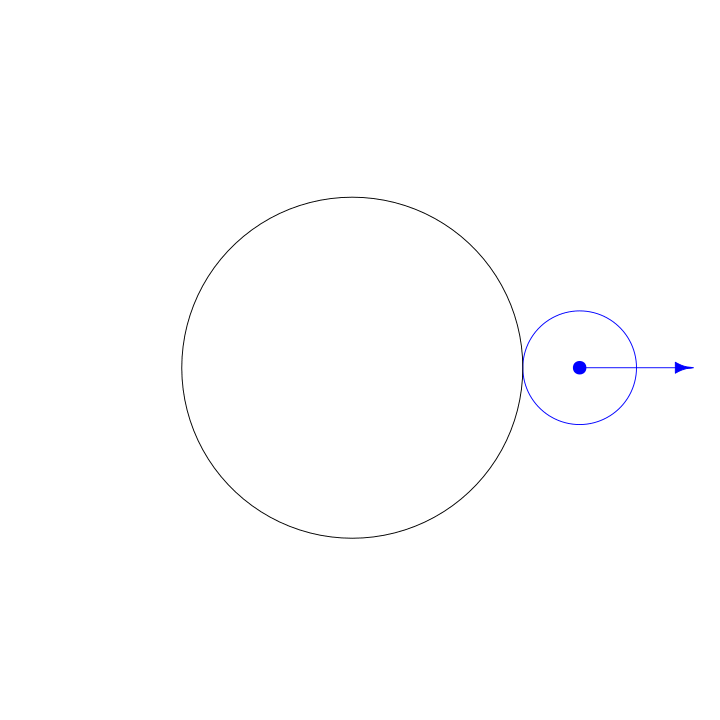

Setting the cycling radius
to a negative value will
make the cycling circle
rotate around the outside
of the fixed circle.
]
]

.column[
![](animationsvg.gif)
]

---
class: split-square2, dark

.column.light[.vmiddle.p-5.font_large[
Although I still like making spirographs by hand, I wanted to extend what could be done with the traditional spirograph. I wrote the [spiro ](https://wjschne.github.io/spiro/articles/HowToUse/spiro.html) package in R to make images that would be impossible to create on paper.
]]

.column.dark.font-medium[.vmiddle.p-5.font_large[
I cannot usually predict what will happen when I play with the three primary numbers of the equation. However, once a certain combination strikes me as interesting, I play with cutting it into different color segments to see if something of further interest happens. Sometimes I merge many spirographs and spin them to see if the emerging patterns are pleasing.
]]

---
class: middle, split-square1, dark

.column.light.font3.center[.vmiddle.p-5[
Here I demonstrate what can be done with [spiro ](https://wjschne.github.io/spiro/articles/HowToUse/spirograph.html) package.
]]

.column.dark.font3.center[.vmiddle.p-5[
I would love to see what you can do with it.
]]

---
class: split-square1

.column[

<img src="my_non_canonical_backstory.svg" type="image/svg+xml" width="100%", height="100%">

]

.column.p-2.light[
.vmiddle.center[

# My Non-
# Canonical
# Backstory

]
]

???

```r
k <- 8
crossing(cycling_radius = 1:k, fixed_radius = k * 2 + 1) %>%
  rowid_to_column("id") %>%
  mutate(
    colors = lacroix_palette("Coconut", n = k , "continuous"),
    file = paste0("sdfds.", id, ".svg")
  ) %>%
  select(-id) %>%
  pmap(
    spiro,
    points_per_polygon = 300,
    draw_fills = F,
    transparency = 0.9) %>%
  image_merge(
    output = "my_non_canonical_backstory.svg") %>%
  add_background()
```

---
class: split-square2

.column.dark[
.vmiddle.center[
# Licorice Donut
# Vivisection
]
]

.column.p-3[

<img src="licorice_donut_vivisection.svg" type="image/svg+xml", >

]

???

```r
rainbow_colors <- hsv(
    h = seq(1 / 16, 1, length.out = 16),
    s = 0.7,
    v = 0.7)

spiro(
  fixed_radius = 16,
  cycling_radius = 5,
  pen_radius = 5,
  file = "licorice_donut_vivisection.svg",
  color_groups = 16,
  color_cycles = 2,
  points_per_polygon = 50,
  colors = rainbow_colors,
  transparency = 0.7) %>%
  add_background_gradient(
    colors = c("white", "black", "black", "white"),
    stops = c(.27, .34, .93, 1),
    rounding = 1,
    radius = 1)
```

---
class: split-square1, dark

.column.p-3.bg-white[

<object id="osloaster" class="spiro" data="oslo_aster.svg" type="image/svg+xml"></object>

<button id="osloAsterButton" type="button" class="playbtn btn btn-light position-absolute bottom-0 start-0 m-2" onclick='playpause("osloaster", this);'>Play</button>

]

.column.p-5.dark[
.vmiddle.center[
# When We
# Meet Again,
# Will We Be
# .small[As] We Were?
]

]

???

```r
n <- 10
oslo_colors <- scico(n = n,
                     palette = "oslo",
                     alpha = 0.9) %>%
  rev()

spiro(file = "oslo_aster.svg",
      rotation = pi / 6,
      points_per_polygon = 100) %>%
  image_merge(output = "oslo_aster.svg",
              copies = n) %>%
  add_fills(colors = oslo_colors) %>%
  image_scale(scale = sqrt(0.75 ^ (seq(0, n - 1)))) %>%
  image_spin(rpm = 1:n + 1) %>%
  add_background(color = "black",
                 rounding = 1) %>%
  pause_onload()
```

---
class: split-square2, dark

.column.p-5.light[
.vmiddle.center[
# But for the
# Darkness,
# Nothing
# Shimmers
]
]
.column[

<img src="but_for_the_darkness_nothing_shimmers.svg" type="image/svg+xml">

]

???

```r
set.seed(105)
k <- 15
bg_colors <- paste0("gray", sample(1:k, k))

bg_stops <- sort(runif(k))

spiro(
  fixed_radius = 2 * 13 * 17,
  cycling_radius = 3 * 11 * 19,
  pen_radius = 171,
  file = "but_for_the_darkness_nothing_shimmers.svg",
  draw_fills = F,
  line_width = 3,
  color_groups = 380,
  color_cycles = 31,
  points_per_polygon = 100,
  colors = c(
    scico(60 * 2, palette = "lisbon", 0.8),
    scico(40 * 2, palette = "cork", 0.25),
    scico(20 * 2, palette = "lisbon", 1))) %>%
  add_background_gradient(rounding = 0, colors = bg_colors)
```

---
class: split-square1, dark

.column.p-4.bg-white[

<img src="youre_my_favorite.svg" type="image/svg+xml">

]

.column.p-5.dark[
.vmiddle.center[
# You're My
# Favorite
]
]

???

```r
k <- 36
files <- paste0("s", 1:k, ".svg")
pen_radii <- seq(3.8, 1.5, length.out = k)
alphas <- rep_len(c(0.85, rep(0.2, 4)), k)
colors <- rep_len(scico(6, palette = "devon"), k) %>%
           alpha(., alpha = alphas)

tibble::tibble(
  file = files,
  pen_radius = pen_radii,
  colors = colors) %>%
  purrr::pmap_chr(
    spiro,
    fixed_radius = 7,
    cycling_radius = 4,
    rotation = -pi / 10,
    points_per_polygon = 500,
    draw_fills = T,
    xlim = c(-7, 7),
    ylim = c(-7, 7)) %>%
  image_merge(
    output = "youre_my_favorite.svg") %>%
  add_lines(colors = c(rep(NA,k - 1), "gray")) %>%
  image_rotate(degrees = (1:k / 2.5)) %>%
  add_background_gradient(
    colors = c(
      "#FFFFFF",
      "#26588E",
      "#E5E3F9",
      "#283568",
      bg_light),
    radius = 1,
    rounding = 1,
    stops = c(0.42,0.93,0.96,0.97,1))
```

---
class: split-square2, dark

.column.p-4.light[
.vmiddle.center[
# Ride Ahead
# .small[.small[to]] Make the Fire
]
]

.column[

<img src="ride_ahead_to_make_the_fire.svg" type="image/svg+xml">

]

???

```r
set.seed(23)
k <- 20
low <- 5
high <- 10
bg_colors <- paste0("gray", sample(low:high, k, replace = T))

bg_stops <- sort(runif(k, min = 0, max = .77))
spiro(
  fixed_radius = 359,
  cycling_radius = 261,
  pen_radius = 40,
  color_groups = 36,
  color_cycles = 36,
  draw_fills = F,
  points_per_polygon = 20,
  line_width = 3.5,
  file = "ride_ahead_to_make_the_fire.svg",
  colors = c(
    div_gradient_pal(
      low = "royalblue4",
      mid = "black",
      high = "firebrick4")(seq(0, 1, length.out = 18)),
    div_gradient_pal(
      low = "royalblue",
      mid = "white",
      high = "firebrick")(seq(0, 1, length.out = 18)))) %>%
  add_background_gradient(rounding = 0, colors = bg_colors,
                          stops = bg_stops)   %>%
  add_circle(color = "gray10",
             r = c(0.429, 0.48, 0.559,0.669,0.786, 0.886),
             line_width = 1.5)
```

---
class: split-square1, dark

.column[
<object id="suspensionofdisbelief" class="spiro" data="suspension_of_disbelief.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-light position-absolute bottom-0 start-0 m-2" onclick='playpause("suspensionofdisbelief", this);'>Play</button>

]

.column.p-5.dark[
.vmiddle.center[
# Suspension
# of Disbelief
]
]

???

```r
n <- 20
  spiro(
    fixed_radius = 4,
    cycling_radius = 5,
    points_per_polygon = 500,
    pen_radius = 1,
    file = "suspension_of_disbelief.svg") %>%
  image_merge(
    copies = n,
    output = "suspension_of_disbelief.svg") %>%
  add_fills(
    transparency = 1 / n,
    colors = "blue") %>%
  image_scale(scale = seq(1,0.1,length.out = n)) %>%
  image_spin(rpm = seq(0.5,10, length.out = n)) %>%
  add_restart(fill = bg_light) %>%
    add_background(color = bg_light)
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Nanoscale
# Predictions
]
]

.column[

<img src="nanoscale_predictions.svg" type="image/svg+xml">

]

???

```r
spiro(
  fixed_radius = 800,
  cycling_radius = 677,
  pen_radius = 100,
  color_groups = 10,
  color_cycles = 61,
  windings = 677 * 0.5,
  transparency = 1,
  start_angle = 0,
  points_per_polygon = 300,
  colors = scico(n = 10, palette = "cork"),
  draw_fills = F,
  file = "nanoscale_predictions.svg"
) %>%
  add_background_gradient(colors = c("black", "black", "gray40"))
```

---
class: split-square1

.column[
<object id="violetblackout" class="spiro" data="violet_blackout.svg" type="image/svg+xml"></object>

<button type="button" style="background-color:black" class="playbtn btn btn-dark position-absolute bottom-0 start-0 m-2" onclick='playpause("violetblackout", this);'>Play</button>
!--  -->

]

.column.p-5.light[
.vmiddle.center[
# Violet
# Blackout
]
]

???

```r
my_purple <- scales::muted(scales::alpha("purple",alpha = 0.8))

tibble(
  colors = c(my_purple, "black"),
  fixed_radius = c(16, 15),
  cycling_radius = c(15, 14),
  file = c("purple.svg", "black.svg")) %>%
  pmap(
    spiro,
    points_per_polygon = 1000,
    pen_radius = 1.5,
    draw_fills = FALSE,
    line_width = 4) %>%
  image_merge(output = "violet_blackout.svg") %>%
  image_spin(rpm = c(0.5, -0.5)) %>%
  add_restart(
    color = my_purple,
    fill = "black") %>%
  add_background()
```

---
class: split-square2

.column.p-2.dark.center[
.vmiddle[
# Some Strata
# Still Remember
# the Sun
]
]

.column[

<img src="some_strata_still_remember_the_sun.svg" type="image/svg+xml">

]

.fixed-bottom.left.pb-4.pl-4.smaller.dark.w-1[

<p>Color palette derived from Emily Kngwarreye&rsquo;s <a href="https://www.khanacademy.org/humanities/ap-art-history/global-contemporary/a/kngwarreye-earths-creation" class="demo_img" title="" target="_blank"> <em>Emu Woman</em></a> (1988)</p>

]

???

```r
n <- 25
cc <- ochre_palettes$emu_woman_paired[c(6, 11, 2, 7, 9)] %>%
  rep(5)

tibble::tibble(
  fixed_radius = n + 2,
  cycling_radius = 1:n,
  pen_radius = 1:n + 0,
  transparency = 0.85,
  rotation = pi / 6,
  colors = cc,
  file = paste0("asdf", 1:n, ".svg")) %>%
  purrr::pmap(spiro, points_per_polygon = 500) %>%
  image_merge(
    output = "some_strata_still_remember_the_sun.svg") %>%
  image_scale(scale = seq(1, 0.1, length.out = n) ^ 0.85) %>%
  add_background(color = bg_light)
```

---
class: split-square1, dark

.column[

<img src="when_time_reverses.svg" type="image/svg+xml">

]

.column.p-2.dark[
.vmiddle.center[
# When Time
# Reverses,
# You'll Know
# What's Coming
]
]

???

```r
spiro(
  fixed_radius = 919,
  cycling_radius = 367,
  pen_radius = 509,
  windings = 403,
  color_groups = 17,
  color_cycles = 6,
  points_per_polygon = 400,
  transparency = 0.5,
  file = "when_time_reverses.svg",
  colors = scico(17, palette = "tofino")
) %>%
  add_background_gradient(colors = c(bg_light))
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Purple
# Midnight
]
]

.column[

<img src="purple_midnight.svg" type="image/svg+xml">

]

???

```r
spiro(
  file = "purple_midnight.svg",
  fixed_radius = 800,
  cycling_radius = 751,
  pen_radius = 40,
  color_groups = 4,
  color_cycles = 2,
  points_per_polygon = 5000,
  colors = c(
    "midnightblue",
    "white",
    "purple4",
    "white")) %>%
  add_lines(
    colors = "black",
    line_width = 0.15) %>%
  add_background_gradient(
    stops = c(0,0.25,0.63,0.67,0.70,1),
    colors = c(
      "black",
      "purple4",
      "black",
      "midnightblue",
      "black",
      "gray20"))
```

---
class: split-square1, dark

.column.bg-white[
<object id="illusively" class="spiro" data="illusively_elusive_allusion.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-light position-absolute bottom-0 start-0 m-2" onclick='playpause("illusively", this);'>Play</button>

]

.column.p-2.dark[
.vmiddle.center[
# Illusively
# Elusive
# Allusion
]
]

???

```r
k <- 80
  spiro(
    4,
    3,
    3,
    file = "asdf.svg",
    color_groups = 4,
    colors = rgb(
      c(0, .1418, .2118, .7012),
      c(.0039, .1608, .6392, 1),
      c(.3059, 0.9569, .9922, .9647),
    )  ,
    transparency = 0.5,
    points_per_polygon = 50
  ) %>%
    image_merge(
      copies = k,
      output = "illusively_elusive_allusion.svg") %>%
    image_scale(scale = seq(1, 0.2, length.out = k)) %>%
    image_spin(rpm = rep(c(1, -1), k / 2) * seq(1, 10, length.out = k)) %>%
  add_restart()
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Skyscraper
# Sunrise
]
]

.column[

<img src="skyscraper_sunrise.svg" type="image/svg+xml">

]

???

```r
set.seed(365)

k <- 12
bg_colors <- scico(31, palette = "vik") %>%
  rev() %>%
  scales::muted(., l = 7, c = 7) %>%
  `[`(sample(1:31, k, replace = T))

bg_stops <- sort(runif(k))
spiro(
  fixed_radius = 1231,
  cycling_radius = 529,
  pen_radius = 1233,
  color_groups = 67,
  color_cycles = 59,
  windings = 101,
  points_per_polygon = 50,
  transparency = 1,
  colors = rev(scico(67, palette = "vik")),
  file = "skyscraper_sunrise.svg") %>%
  add_background_gradient(bg_colors, stops = bg_stops)
```

---
class: split-square1, dark

.column.p-3.light[

<img src="blurry_metal_eye.svg" type="image/svg+xml">

]

.column.p-2.dark[
.vmiddle.center[
# Blurry
# Metal
# Eye
]
]

???

```r
spiro(
  fixed_radius = 167,
  cycling_radius = 173,
  pen_radius = 14,
  windings = 173,
  color_groups = 52,
  color_cycles = 72 ,
  points_per_polygon = 50,
  file = "blurry_eye.svg",
  colors = scico(n = 52,
                 alpha = 0.9,
                 palette = "roma")
) %>%
  image_merge(copies = 6,
              output = "blurry_metal_eye.svg") %>%
  image_scale(seq(1, 0.95, length.out = 6)) %>%
  add_background_gradient(colors = c("black", bg_light, bg_light), stops = c(0.66, 0.69, 1))
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Maelstrom
# Sunset
]
]

.column[

<img src="maelstrom_sunset.svg" type="image/svg+xml">

]

???

```r
spiro(
  fixed_radius = 12 ,
  cycling_radius = 121,
  pen_radius = 100,
  file = "maelstrom_sunset.svg",
  color_groups = 36,
  color_cycles = 48,
  points_per_polygon = 50,
  colors = scico(18,palette = "roma")) %>%
  add_background(rounding = 0, color = bg_dark)
```

---
class: split-square1, dark

.column[

<img src="not_forgotten_bg.svg" type="image/svg+xml">

]

.column.p-2.dark[
.vmiddle.center[
# Can We
# Open It,
# Grandma?
]
]

???

```r
c(spiro(
  fixed_radius = 21,
  cycling_radius = -20,
  pen_radius = 35,
  transparency = 0.2,
  colors = "black",
  file = "not_forgotten1.svg") %>%
  add_lines(colors = "#FFFFFFAA", line_width = .25),
  spiro(
  fixed_radius = 21,
  cycling_radius = -20,
  pen_radius = 35,
  transparency = .75,
  colors = "black",
  rotation = pi / 21,
  file = "not_forgotten2.svg") %>%
  add_lines(colors = "#FFFFFFAA", line_width = .5)) %>%
  image_merge(output = "not_forgotten.svg") %>%
  add_background_gradient(
    rounding = 1,
    radius = 1,
    colors = c("lightcyan2",
      rep(c("royalblue4", "lightcyan2"), 13),"royalblue4",
      rep(bg_light,2)),
      stops = c(0,
        0.05, 0.07,
        0.11, 0.1578947,
        0.2105263, 0.28,
        0.3395, 0.39,
        0.441, 0.485,
        0.53, 0.571,
        0.609, 0.6415,
        0.682, 0.711,
        0.745, 0.77,
        0.80, 0.823,
        0.84, 0.86,
        0.88, 0.895,
        0.905, 0.91,
        0.92, 0.93, 1))
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# D'Ya Wanna
# Roller Skate?
]
]

.column[

<img src="wanna_rollerskate.svg" type="image/svg+xml">

]

???

```r
k <- 40
tibble(
  fixed_radius = 5,
  cycling_radius = 3,
  pen_radius = seq(12, 3, length.out = k),
  colors = viridis::viridis(k, option = "D", alpha = 0.15),
  rotation = seq(5 * pi / k,0,  length.out = k)) %>%
  pmap_chr(spiro, points_per_polygon = 100) %>%
  image_merge(
    output = "wanna_rollerskate.svg") %>%
  image_rotate(degrees = -360 / 20) %>%
  # image_spin(1:k / k) %>%
  add_background(color = bg_dark)
```

---
class: split-square1, dark

.column.p-2.light[
<object id="counterspintriangles" class="spiro" data="counterspin_triangles.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-light position-absolute bottom-0 start-0 m-2" onclick='playpause("counterspintriangles", this);'>Play</button>

]

.column.p-2.dark[
.vmiddle.center[
# Remembering
# .small[.small[the]] Merger .small[.small[of]]
# Reemerging
# Memories

]
]

???

```r
k <- 80
  spiro(3,1,0.5,
    file = "asdf.svg",
    color_groups = 3,
    transparency = 0.5,
    colors = c("#000000", bg_light, "#8f0a7f"),
    points_per_polygon = 100) %>%
    image_merge(
      copies = k,
      output = "counterspin_triangles.svg") %>%
    image_scale(scale = seq(1, 0.1, length.out = k)) %>%
    image_spin(rpm = 3 * rep(c(1, -1), k / 2) * seq(1, 3, length.out = k)) %>%
    add_background(rounding = 1, color = bg_dark) %>%
    pause_onload()
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Checkered
# Future
]
]

.column[

<img src="checkered_future.svg" type="image/svg+xml">

]

???

```r
ngroups <- 4 * 6

cc <- c(
  rainbow(ngroups / 4, s = 0.9, v = 0.3),
  rev(rainbow(ngroups / 4, s = 0.9, v = 0.3)),
  rainbow(ngroups / 4, s = 0.3, v = .9),
  rev(rainbow(ngroups / 4, s = 0.3, v = .9)))

cc[seq(2, ngroups, 2)] <- "black"

spiro(
  fixed_radius = 199,
  cycling_radius = 120,
  pen_radius = 43,
  color_groups = ngroups,
  color_cycles = 1440 %/% ngroups,
  points_per_polygon = 50,
  transparency = .3,
  draw_fills = T,
  colors = cc,
  file = "checkered_future.svg") %>%
  add_background_gradient(
    colors = c(
      "black", "black",
      "gray90", "black",
      "gray95", "black",
      "gray50"),
    stops = c(
      .00, .18,
      .20, .3,
      .50, .60,
      1))
```

---
class: split-square1

.column[

 <img src="expensive_plaid.svg" type="image/svg+xml">

]

.column.p-2.light[
.vmiddle.center[
# Expensive
# Plaid
]
]

???

```r
spiro(
  fixed_radius = 1,
  cycling_radius = sqrt(7),
  pen_radius = sqrt(7),
  windings = 450,
  draw_fills = F,
  colors = c(
    scico(11, palette = "tofino", direction = 1),
    scico(4, palette = "nuuk")),
  color_groups = 16,
  points_per_polygon = 100,
  color_cycles = 450 * 8,
  line_width = 0.75,
  lend = 1,
  file = "expensive_plaid.svg") %>%
  add_background(color = bg_dark)
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Groovy
# Church
]
]

.column[

<img src="groovy_church.svg" type="image/svg+xml">

]

???

```r
cc <- hcl(h = seq(0, 1, length.out = 52) * 220 + 70,
          c = 50,
          l = 28)

cc[1:14] <- hcl(h = seq(0, 1, length.out = 14) * 250 + 80,
                c = 60,
                l = 42)

# cc <- scales::muted(cc, l = 40)
spiro(
  fixed_radius = 44,
  cycling_radius = 13,
  pen_radius = 13,
  file = "asdf.svg",
  colors = cc,
  color_cycles = 4,
  draw_fills = F,
  color_groups = 4 * 13,
  points_per_polygon = 15,
  line_width = 0.3
) %>%
  spiro::image_merge(.,
                     output = "groovy_church.svg",
                     copies = 38) %>%
  image_rotate(1:36 * 0.21) %>%
  add_background_gradient(
    colors = c("gray15", "black",
               "black", "gray10", "black",
               "black", "gray15"),
    stops = c(0, 0.27,
              0.271, 0.5, .655,
              0.656, 1)
  )
```

---
class: split-square1, dark

.column.p-2.light[

<img src="hawaiian_snow_salad.svg" type="image/svg+xml">

]

.column.p-2.dark[
.vmiddle.center[
# Hawaiian
# Snow Salad
]
]

???

```r
spiro(
  fixed_radius = 200,
  cycling_radius = 89,
  pen_radius = 175,
  color_groups = 200,
  color_cycles = 5,
  points_per_polygon = 200,
  file = "hawaiian_snow_salad.svg",
  colors = alpha(lacroix_palette(
    name = "Coconut",
    n = 200,
    type = "continuous"),
    alpha = 0.8))
```

---
class: split-square2

.column.p-2.dark[
.vmiddle.center[
# Was It
# This Obvious
# All Along?
]
]
.column.p-2.bg-white[

<img src="was_it_this_obvious_all_along.svg" type="image/svg+xml">

]

???

```r
tibble::tibble(
  points_per_polygon = 1000,
  fixed_radius = 17,
  cycling_radius = 3:8,
  colors = c(
    "dodgerblue4", "white",
    "dodgerblue3", "white",
    "dodgerblue2", "white")) %>%
  pmap_chr(spiro) %>%
  image_merge(
    output = "was_it_this_obvious_all_along.svg") %>%
  add_background_gradient(colors = c("#58A5F2", "#58A5F2", "black", "white"),
                          stops = c(0,.48,.67,0.68))
```

---
class: split-square1, dark

.column.p-2[
<object id="secondeventhorizon" class="spiro" data="second_event_horizon.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-dark position-absolute bottom-0 start-0 m-2" onclick='playpause("secondeventhorizon", this);'>Play</button>

]

.column.dark.pr-4[

.vmiddle.center[
# Second
# Event
# Horizon
]
]

???

```r
spiro(
  file = "asdf.svg",
  fixed_radius = sqrt(7),
  cycling_radius = sqrt(5),
  pen_radius = 0.55,
  color_groups = 1,
  color_cycles = 1,
  windings = 49,
  points_per_polygon = 2000
) %>%
  image_merge(copies = 2, output = "second_event_horizon.svg") %>%
  add_fills(c(rep(c("#282829", "gray95"), 9), rep(c("gray95", "#282829"), 9))) %>%
  add_lines(
    line_width = c(0.8, 0.4),
    colors = c("firebrick2", "royalblue2"),
    transparency = 0.45
  ) %>%
  image_scale(scale = c(.95, 0.96)) %>%
  image_rotate(degrees = c(-1,1)) %>%
  image_spin(rpm = 1 * c(-0.25, 0.125)) %>%
  add_restart(color = "#bbb", fill = "#282829") %>%
  add_background_gradient(
    colors = c(
      "gray95",
      tinter::darken("royalblue", amount = .2),
      "#282829",
      "#282829",
      tinter::darken("firebrick", amount = .3),
      "#282829"
    ),
    stops = c(0.61,
              0.65,
              0.66,
              0.665,
              0.685,
              0.69)
  ) %>%
  add_circle(color = NA, fill = "#282829", r = 0.127)
```

---
class: split-square2

.column.p-2.dark[
.vmiddle.center[
# The Past Was
# Never Simple
]
]

.column[

<img src="the_past_was_never_simple.svg" type="image/svg+xml">

]

???

```r
spiro(
  fixed_radius = 800,
  cycling_radius = 749,
  pen_radius = 51,
  color_groups = 4,
  color_cycles = 2,
  transparency = 0.25,
  start_angle = 0,
  points_per_polygon = 7000,
  rotation = -pi / 8,
  windings = 749,
  file = "the_past_was_never_simple.svg",
  colors = c(
    "firebrick4",
    "purple4",
    "midnightblue",
    "black")) %>%
  add_background_gradient(
    rounding = 0,
    stops = c(0, .08, 0.083, .6, 0.7, 1),
    colors = c(
      "white",
      "gray95",
      "gray40",
      "white",
      "white",
      "white"))
```

---
class: split-square1, dark

.column.p-2.light[

<img src="yes_you_may.svg" type="image/svg+xml">

]

.column.p-2.dark[
.vmiddle.center[
# Yes You May
]
]

???

```r
k <- 12

crossing(
  fixed_radius = k,
  cycling_radius = seq(1,k),
  pen_radius = k) %>%
  rowid_to_column("file") %>%
  mutate(
    file = paste0(file,".svg"),
    colors = c(
      scico(
        n = nrow(.) / 2,
        palette = "devon",
        alpha = .9),
      scico(
        n = nrow(.) / 2,
        palette = "devon",
        alpha = .7))) %>%
  pmap(
    spiro,
    draw_fills = T) %>%
  rev() -> p

p[-1:-3] %>%
  rev %>%
  map2(
    seq(1,0.5, length.out = length(.)) ^ 0.4 ,
    image_scale) %>%
  image_merge(
    output = "yes_you_may.svg") %>%
  add_lines(line_width = 0.2) %>%
  add_background(color = bg_light)
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# The Foreglow.small[.small[&nbsp;of]]
# .small[.small[a&nbsp;]]Simple Insight
]
]
.column[

<img src="foreglow.svg" type="image/svg+xml">

]

???

```r
l <- 27
  crossing(
    fixed_radius = 17,
    cycling_radius = 1:9,
    pen_radius = 11
  ) %>%
    mutate(colors = LaCroixColoR::lacroix_palette("Coconut", n =  9) %>% scales::alpha(0.9)) %>%
    pmap(
      spiro,
      draw_fills = T,
      xlim = c(-l, l),
      ylim = c(-l, l),
      color_cycles = 17 * 6,
      points_per_polygon = 150
    ) %>%
    image_merge(output = "foreglow.svg") %>%
    add_background_gradient(
      colors = rep(
        LaCroixColoR::lacroix_palette("Coconut", 9) %>% colorspace::darken(.1),
        3
      ),
      stops = c(0.7 * seq(0, 1, length.out = l - 3), 0.78 , 0.88, 0.98)
    )
```

---
class: split-square1

.column[

<img src="bending_is_not_a_compromise.svg" type="image/svg+xml">

]

.column.p-2.light[
.vmiddle.center[
# Bending Is Not
# a Compromise
]
]

```r
n <- 36

tibble(
  fixed_radius = 13,
  cycling_radius = 11,
  pen_radius = seq(1, n) / 2,
  file = paste0("sp", 1:n, ".svg"),
  colors = rep(scico(
    n = n / 4,
    alpha = 0.6,
    palette = "tofino"),
  times = 4)) %>%
  pmap(spiro,
       points_per_polygon = 400,
       xlim = c(-20, 20),
       ylim = c(-20, 20)) %>%
  rev() %>%
  image_merge(
    output = "bending_is_not_a_compromise.svg") %>%
  image_rotate(sqrt(1:n * 50)) %>%
  add_background(color = bg_dark)
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Value-Added
# Fragility
]
]
.column[

<img src="value_added_fragility.svg" type="image/svg+xml">

]

???

```r
spiro(
  fixed_radius = 121,
  cycling_radius = 131,
  pen_radius = 11,
  file = "value_added_fragility.svg",
  color_groups = 121,
  color_cycles = 11,
  points_per_polygon = 100,
  colors = scico(11,palette = "cork")) %>%
  add_background(rounding = 0, color = bg_dark)
```

---
class: split-square1

.column[

<img src="restoration_agreement.svg" type="image/svg+xml">

]

.column.p-2.light[
.vmiddle.center[
# Restoration
# Agreement
]
]

???

```r
c(
  spiro(
      file = "restoration_agreement1.svg",
      fixed_radius = 800,
      cycling_radius = 677,
      pen_radius = 101,
      color_groups = 8,
      color_cycles = 677 * 3 ,
      windings = 677 * 0.5,
      transparency = 1,
      rotation = pi / 13,
      points_per_polygon = 3,
      colors = paste0("gray", c(92,93,94,95,12,13,14,15))
    ),
  spiro(
    file = "restoration_agreement2.svg",
    fixed_radius = 800,
    cycling_radius = 677,
    pen_radius = 101,
    color_groups = 8,
    color_cycles = 677 * 3 ,
    windings = 677 * 0.5,
    transparency = 1,
    points_per_polygon = 3,
    colors = scico(n = 8, palette = "cork")
  )) %>%
  image_merge(output = "restoration_agreement.svg") %>%
  add_background(color = bg_dark)
```

---
class: split-square2

.column.p-2.dark[
.vmiddle.center[
# Convoluted
# Candor
]
]

.column.pt-4.light[

<img src="convoluted_candor.svg" type="image/svg+xml">

]

???

```r
lim <- 5
k <- 36
tibble(
  pen_radius = seq(3, 1, length.out = k),
  colors = scico(n = k, palette = "cork") %>%
    scales::muted(., l = 50, c = 40),
  transparency = rep_len(c(rep(0.4, 3), 1), k),
  line_width = rep_len(c(rep(0.5, 3), 1), k)
) %>%
  pmap(
    spiro,
    fixed_radius = 5,
    points_per_polygon = 200,
    cycling_radius = 3,
    rotation = -pi / 2,
    xlim = c(-lim, lim),
    ylim = c(-lim, lim),
    draw_fill = F
  ) %>%
  image_merge("convoluted_candor.svg", delete_input = T) %>%
  add_background(color = bg_light)
```
---
class: split-square1

.column[
<object id="reconciliation491" class="spiro" data="reconciliation491.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-dark position-absolute bottom-0 start-0 m-2" style="background-color: #000526;" onclick='playpause("reconciliation491", this);'Play</button>

]

.column.p-2.light[
.vmiddle.center[
# Reconciliation
# Reset 490
]
]

???

```r
n <- 36
spiro(fixed_radius = 3,
      cycling_radius = 1,
      file = "reconciliation491.svg",
      colors = "#5262CA10",
      points_per_polygon = 300) %>%
  image_scale(scale = 0.7) %>%
  image_merge(copies = n,
              output = "reconciliation491.svg") %>%
  add_lines(colors = "#5262CAAA", line_width = 0.5) %>%
  image_spin(rpm = seq(1,n) / 12,
             rotation_point = c(0.6135,0.6135)) %>%
  image_shift(x = -81.5, y = 81.5) %>%
  add_restart(color = colorspace::lighten("#5262CA", .5),
              fill = colorspace::darken("#5262CA", .85)) %>%
  add_background_gradient(colors = map(c(0.98, 0.98, 0.95, 0.8),
                                       colorspace::darken,
                                       col = "#5262CA"))
```

---
class: split-square2
.fixed-bottom.left.p-4.w-1.dark[Color palette derived from Vermeer&rsquo;s <a href="https://www.wikiwand.com/en/The_Milkmaid_(Vermeer)" class="demo_img" title="" target="_blank"> <em>Milkmaid</em></a>]

.column.p-2.dark[
.vmiddle.center[
# Epistemological
# Modesty
]
]
.column[

<img src="epistemological_modesty.svg" type="image/svg+xml">

]

???

```r
spiro(
  fixed_radius = 8,
  cycling_radius = 7,
  pen_radius = 1.069,
  color_groups = 8,
  color_cycles = 2,
  start_angle = 0,
  rotation = -pi / 8 ,
  transparency = .5,
  points_per_polygon = 500,
  windings = 7 * 6,
  file = "epistemological_modesty.svg",
  colors = dutchmasters_pal(
    palette = "milkmaid",
    reverse = T)(8)) %>%
  add_background(color = bg_light)
```

---
class: split-square1

.column.p-2.dark[
<object id="webwindows" class="spiro" data="web_windows.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-dark position-absolute bottom-0 start-0 m-2" onclick='playpause("webwindows", this);'>Play</button>

]

.column.p-2.light[
.vmiddle.center[
# Web Windows
]
]

???

```r
n <- 10
spiro(
  fixed_radius = 6,
  cycling_radius = 11,
  pen_radius = -6 ,
  colors = "white",
  file = "web_windows.svg",
  draw_fills = F,
  transparency = 0.9,
  line_width = 0.75,
  rotation = pi / 6,
  points_per_polygon = 1000) %>%
  image_merge(
    output = "web_windows.svg",
    copies = n) %>%
  add_fills(viridis_pal(
    end = 0.97,
    alpha = 0.9)(n)) %>%
  image_scale(scale = 1.07 * sqrt(0.8 ^ (seq(0, n - 1)))) %>%
  image_spin(rpm = 1:n * 0.15) %>%
  add_restart(
    fill = "#00000000",
    color = bg_light
    ) %>%
  add_background(color = bg_dark)
```

---
class: split-square2

.column.p-2.dark[
.vmiddle.center[
# Happy
# Birthday,
# Whenever
# It Was
]
]

.column.bg-white[

<img src="christmas_wreath.svg" type="image/svg+xml">

]

???

```r
spiro(
  fixed_radius = sqrt(13),
  cycling_radius = sqrt(11),
  pen_radius = sqrt(0.5),
  windings = 401,
  color_groups = 5,
  points_per_polygon = 40,
  color_cycles = 906,
  colors = c("darkred","gray90","darkgreen","gray20","forestgreen"),
  transparency = 0.55,
  file = "christmas_wreath.svg") %>%
  add_background_gradient(
    rounding = 1,
    radius = 1,
    colors = c("white", rep(c("gray30","black"), 5),"white"),
    stops = c(0.4,seq(.45,.9,length.out = 10),0.93))
```

---
class: split-square1, dark

.column[
<object id="collidingscopes" class="spiro" data="colliding_scopes.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-light position-absolute bottom-0 start-0 m-2" onclick='playpause("collidingscopes", this);'>Play</button>

]

.column.p-2.dark[
.vmiddle.center[
# Colliding
# Scopes
]
]

???

```r
tibble(colors = c("#004D47", "#128277")) %>%
  pmap(
    spiro,
    fixed_radius = pi,
    cycling_radius = sqrt(8),
    pen_radius = 0.5 * sqrt(8) / pi,
    windings = 81,
    start_angle = 0,
    points_per_polygon = 5001,
    transparency = 1
  ) %>%
  tibble(input = .,
         duration = c(7, 11)) %>%
  pmap(image_animate,
       attribute = "opacity",
       values = c(0.2, 0.8, 0.2)) %>%
  image_merge(output = "colliding_scopes.svg",
              delete_input = T) %>%
  image_spin(rpm = c(0.1, -0.1)) %>%
  add_restart(fill = "#00000000") %>%
  add_background(color = bg_light)
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# .small[.small[The]] Increasing
# Returns
# .small[.small[of]] Having
# Traveled
]
]

.column[

<img src="the_increasing_returns_of_having_traveled.svg" type="image/svg+xml">

]

???

```r
n <- 60
spiro(3, 1, 1,
      color_groups = 6,
      colors =  LaCroixColoR::lacroix_palettes$Tangerine[1,, drop = T] %>%
        scales::alpha(0.7),
      points_per_polygon = 50,
      file = "delta.svg") %>%
  image_merge(copies = n,
              output = "the_increasing_returns_of_having_traveled.svg") %>%
  image_scale(seq(0.0001,1, length.out = n) ^ (1/1.25)) %>%
  image_rotate(seq(0,360 * 5.65, length.out = n)) %>%
  spiro::add_lines(input = ., colors = "gray10") %>%
  add_background_gradient(colors = c("gray30", "gray5","gray30","gray5"))
```

---
class: split-square1

.column[

<img src="old_errors.svg" type="image/svg+xml">

]

.column.light[
.vmiddle.center[
# Mining
# Old Errors
# .small[.small[for]] New Truths
]
]

???

```r
my_palette <-
  scales::colour_ramp(c(
    rgb(.74, .19, .22, .9),
    rgb(.86, .76, .22, .2),
    rgb(.91, .92, .92, .9),
    rgb(.11, .22, .22, .95),
    rgb(.22, .22, .22, .1),
    rgb(.24, .22, .71, .9)
  ))
spiro(
  fixed_radius = 226,
  pen_radius = 235,
  cycling_radius = 15,
  points_per_polygon = 10,
  file = "old_errors.svg",
  color_groups = 40,
  color_cycles = 61,
  colors = my_palette(seq(0, 1, length.out = 40))
) %>%
  add_background_gradient(colors = c("gray20", "white", "gray90", "gray30","gray5"),
                          stops = c(0, .1, 0.6, .65, 1))
```

---
class: split-square2, dark

.column.p-2.light[
.vmiddle.center[
# Ñañaras
]
]

.column.p-3.bg-black[

<img src="nanaras.svg" type="image/svg+xml">

]

???

```r
my_colors <- c("#969594FF","#00000000","#00000000",
               "#F9F8F7FF","#00000000","#00000000",
               "#585756FF","#00000000","#00000000",
               "#D0CFCDFF","#00000000","#00000000","#171615FF")

tibble(fixed_radius = 541,
       cycling_radius = 601,
       pen_radius = 191,
       windings = 200,
       color_groups = 20,
       points_per_polygon = 40 * 19:23) %>%
  pmap(spiro, colors = my_colors) %>%
  image_merge(output = "nanaras.svg") %>%
  image_scale(c(1.07, .56, .29, 0.15, 0.075)) %>%
  image_rotate(degrees = seq(0, 80, 20)) %>%
  add_background("black")
```

---
class: split-square1

.column[

<img src="portal_to_the_80s.svg" type="image/svg+xml">

]

.column.p-2.light[
.vmiddle.center[
# Portal to
# the 80s
]
]

???

```r
string_bezier(
  file = "portal_to_the_80s.svg",
  x = c(-1, 1, 0,-1, 1,-1, 0, 1,-1, 1),
  y = c(0, 0, 1, 0, 0, 0,-1, 0, 0, 0),
  color = c("#006B6B", "#FFFFFF", "black", "black", "black"),
  n = 200,
  lwd = 5,
  ljoin = 1) %>%
  add_background(color = "#108998")
```

---
class: split-square2
.fixed-bottom.left.p-4.gray[Inscribed polygons adapted from [Mathologer's T-Shirt](https://www.youtube.com/watch?v=qhbuKbxJsk8)]

.column.p-2.dark[
.vmiddle.center[
# Supervillains'
# Superior Sense
# of Fashion
]
]

.column[

<img src="superhero_bg.svg" type="image/svg+xml">

]

???

```r
library(ggforce)

k <- 30
r <- rep(0, k)
r[1:2] <- 1
for (i in 3:k) {
  r[i] <- r[i - 1] * 1 / cos(pi / i)
}
xy <- function(n, r, dtheta) {
  tibble(x = r * cos((0:n) * dtheta + pi / 2),
         y = r * sin((0:n) * dtheta + pi / 2))
}

svg("superhero.svg", width = 8, height = 8)
par(pty = "s")
k <- 30
r <- rep(0, k)
r[1:2] <- 1
for (i in 3:k) {
  r[i] <- r[i - 1] * 1 / cos(pi / i)
}
plot(
  x = c(1, 2),
  y = c(1, 2),
  xlim = c(-8.7, 8.7),
  ylim = c(-8.7, 8.7),
  type = "n",
  axes = F,
  xlab = NA,
  ylab = NA,
  ann = F
)

bg <- "slateblue"
plotrix::draw.circle(
  0,
  0,
  radius = 8.7,
  col = bg,
  border = NA,
  nv = 200
)
tibble(n = 2:k, r = r[-1]) %>%
  mutate(dtheta = 2 * pi / n,
         d_xy = pmap(list(n, r, dtheta), xy)) %>%
  select(-dtheta) %>%
  arrange(-n) %>%
  purrr::pwalk(., function(n, r, d_xy) {
    plotrix::draw.circle(
      0,
      0,
      radius = r,
      col = paste0("gray", n * 3),
      border = bg,
      lwd = 2 * (2 / n) ^ (1 / 5),
      nv = 200
    )
    if (n > 2)
      polygon(
        d_xy,
        col = paste0("gray", 2),
        border = bg,
        lwd
        = 2 * (2 / n) ^ (1 / 5)
      )
  })
dev.off()
```

---
class: split-square1

.column[
<object id="sunrisesaresunsetsrecycled" class="spiro" data="sunrises_are_sunsets_recycled.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-dark position-absolute bottom-0 start-0 m-2" onclick='playpause("sunrisesaresunsetsrecycled", this);'>Play</button>

]

.column.p-2.light[
.vmiddle.center[
# Sunrises
# Are Sunsets
# Recycled
]
]

???

```r
k <- 9
n_dots <- 120
cc <- lacroix_palette(
  name = "Coconut",
  n = n_dots) %>%
  alpha(0.7)

s <- spiro(
  fixed_radius = 9,
  cycling_radius =     4,
  pen_radius =     6,
  draw_fills = F,
  colors = alpha(rep("black", k), 0.01),
  color_groups = k,
  points_per_polygon = 50,
  file = "asdf.svg")

for (i in seq(0, n_dots - 1)) {
  s <- add_pathdot(
    s,
    delay = i / (n_dots / 12),
    colors = cc[i + 1],
    radius = 2,
    duration = 32)
}

image_merge(
  s,
  copies = 5,
  output = "sunrises_are_sunsets_recycled.svg") %>%
  image_spin(rpm = 1:5 / 5) %>%
  add_background(color = bg_dark) %>%
  pause_onload()
```

---
class: split-square1

.column[
<object id="oneminutereunion" class="spiro" data="one_minute_reunion.svg" type="image/svg+xml"></object>

<button type="button" class="playbtn btn btn-light position-absolute bottom-0 start-0 m-2" onclick='playpause("oneminutereunion", this);'>Play</button>

]

.column.p-2.dark[
.vmiddle.center[
# One-Minute
# Reunion
]
]

???

```r
spiro(
  fixed_radius = 5,
  cycling_radius = 1,
  pen_radius = 11 / 3,
  color_groups = 5,
  colors = rep("gray95", 5),
  start_angle = pi,
  draw_fills = FALSE,
  rotation = pi / 10,
  file = "one_minute_reunion.svg",
  points_per_polygon = 250) %>%
  add_pathdot(
    colors = "firebrick",
    duration = c(2,3,4,5,6,10,12,15,20,30,60)) %>%
  # add_restart(color = "#333333",fill = scales::alpha("gray95")) %>%
  add_background(bg_light)
```

---
class: split-square1

.column[

<img src="graceful_exit.svg" type="image/svg+xml">

]

.column.p-2.light[
.vmiddle.center[
# Graceful Exit
]
]

???

```r
tibble(
  cycling_radius = c(-5,5),
  color_cycles = c(64,32),
  start_angle = c(0 * pi / 64 * 3, 20 * pi / 8),
  line_width = c(4 * 0.68, 4),
  file = c("s3.svg","s4.svg")) %>%
  pmap(
    spiro,
    fixed_radius = 8,
    pen_radius = 5,
    color_groups = 64,
    points_per_polygon = 2,
    draw_fills = F,
    ljoin = 2,
    end_at_beginning = T,
    colors = c(
      viridis_pal()(32),
      rev(viridis_pal()(32)))) %>%
  tibble(input = ., scale = c(1,0.68)) %>%
  pmap(image_scale) %>%
  image_merge(
    output = "graceful_exit.svg",
    delete_input = T) %>%
  add_background_gradient(colors = c("gray5", "gray25"))
```
