Recreating APA Manual Table 7.17 in R with apa7

Making tables in APA style (Part 17 of 24)

In this 24-part series, each of the tables in Chapter 7 of the Publication Manual of the American Psychological Association (7th Edition) is recreated with apa7, flextable, easystats, and tidyverse functions.

NoteHighlights

• Confidence intervals in two columns
• align_chr with drop0trailing = TRUE for intentionally inconsistent rounding

library(apa7)
library(flextable)
library(ftExtra)
library(tidyverse)
set_flextable_defaults(theme_fun = theme_apa,
                       font.family = "Times New Roman")

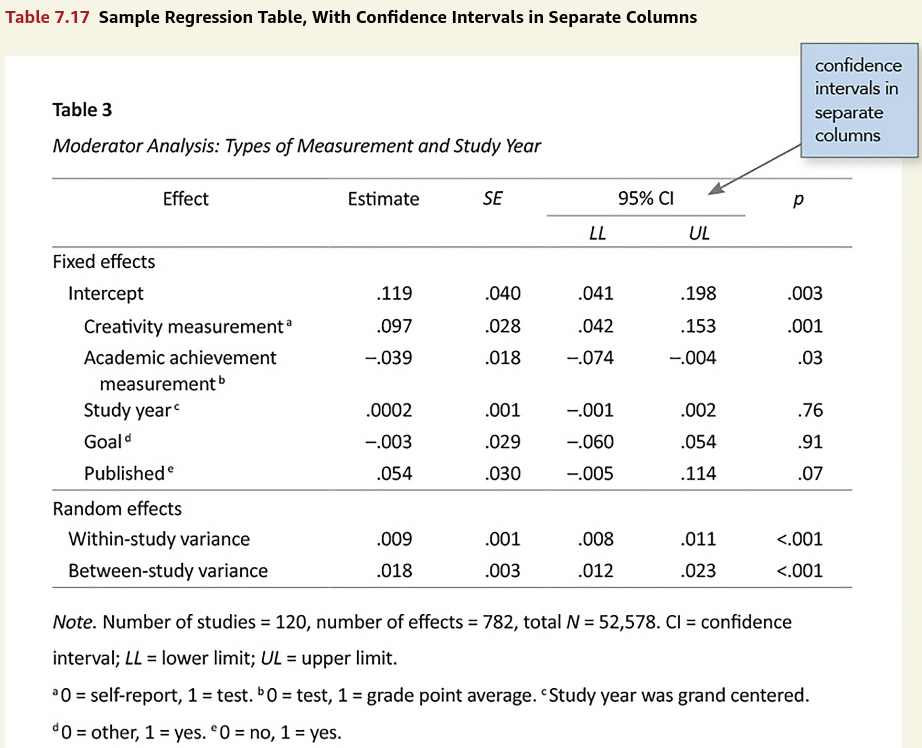

Figure 1

Screenshot of the APA Manual’s Table 7.17

Note that the Estimate column needed inconsistent rounding. Using align_chr with drop0trailing = TRUE and accuracy = .0001, only cells with values in the fourth decimal point will be rounded to .0001.

```{r}
#| label: tbl-717
#| tbl-cap: "Moderator Analysis: Types of Measurement and Study Year"
#| apa-note:
#|   - "Number of studies = 120, number of
#|     effects = 782, total
#|     *N* = 52,578. CI = confidence
#|     interval; *LL* = lower limit;
#|     *UL* = upper limit."
#|   - "^a ^0 = self-report,
#|     1 = test. ^b ^ 0 = test,
#|     1 = grade point average. ^c ^Study
#|     year was grand centered. ^d ^0 = other,
#|     1 = yes. ^e ^0 = no,
#|     1 = yes."

# Make data
d <- tibble(
  effect_type = c(
    "Fixed effects",
    "Fixed effects",
    "Fixed effects",
    "Fixed effects",
    "Fixed effects",
    "Fixed effects",
    "Random effects",
    "Random effects"
  ),
  Effect = c(
    "Intercept",
    "Creativity measurement^&thinsp;a^",
    "Academic achievement measurement^&thinsp;b^",
    "Study year^&thinsp;c^",
    "Goal^&thinsp;d^",
    "Published^&thinsp;e^",
    "Within-study variance",
    "Between-study variance"
  ),
  Estimate = c(0.119, 0.097, -0.039, 2e-04,
               -0.003, 0.054, 0.009, 0.018),
  SE = c(0.04, 0.028, 0.018, 0.001,
         0.029, 0.03, 0.001, 0.003),
  `95% CI_*LL*` = c(0.041, 0.042, -0.074, -0.001,
                    -0.06, -0.005, 0.008, 0.012),
  `95% CI_*UL*` = c(0.198, 0.153, -0.004, 0.002,
                    0.054, 0.114, 0.011, 0.023),
  p = c(0.003, 0.001, 0.03, 0.76,
        0.91, 0.07, 9e-04, 9e-04)
)

# Format data
d_formatted <- d |>
  mutate(Estimate = align_chr(
    Estimate,
    accuracy = .0001,
    drop0trailing = TRUE,
    trim_leading_zeros = TRUE)) |>
  mutate(across(c(Estimate:`95% CI_*UL*`), \(x) {
    align_chr(x,
              accuracy = .001,
              trim_leading_zeros = TRUE)
  })) |>
  mutate(Effect = hanging_indent(Effect, width = 35))

# Make table
d_formatted |>
  apa_flextable(row_title_column = effect_type) |>
  align(j = 1) |>
  padding(j = 1,
          padding.left = c(0,
                           15,
                           rep(30, 5),
                           0,
                           rep(15, 2))) |>
  width(width = c(2.5, rep(.8, 5)))
```

Table 1

Moderator Analysis: Types of Measurement and Study Year

Effect	Estimate	SE	95% CI		p
			LL	UL
Fixed effects
Intercept	.119	.040	.041	.198	.003
Creativity measurement a	.097	.028	.042	.153	.001
Academic achievement     measurement b	−.039	.018	−.074	−.004	.03
Study year c	.0002	.001	−.001	.002	.76
Goal d	−.003	.029	−.060	.054	.91
Published e	.054	.030	−.005	.114	.07
Random effects
Within-study variance	.009	.001	.008	.011	<.001
Between-study variance	.018	.003	.012	.023	<.001

Note. Number of studies = 120, number of effects = 782, total N = 52,578. CI = confidence interval; LL = lower limit; UL = upper limit.

^a 0 = self-report, 1 = test. ^b  0 = test, 1 = grade point average. ^c Study year was grand centered. ^d 0 = other, 1 = yes. ^e 0 = no, 1 = yes.
