The ob_ngon (regular polygon) class — ob

An ngon is a regular polygon, meaning that each side is of equal length. The ob_ngon object can be specified with a center, n (number of sides), radius, and angle. Instead of specifying a radius, one can specify either the side_length or the length of the apothem (i.e., the distance from the center to a side's midpoint.

Usage

ob_ngon(
  center = ob_point(0, 0),
  n = 3L,
  radius = numeric(0),
  angle = 0,
  label = character(0),
  side_length = numeric(0),
  apothem = numeric(0),
  vertex_radius = numeric(0),
  alpha = numeric(0),
  color = character(0),
  fill = character(0),
  linewidth = numeric(0),
  linetype = numeric(0),
  style = S7::class_missing,
  x = numeric(0),
  y = numeric(0),
  id = character(0),
  ...
)

Arguments

center: point at center of the ngon
n: Number of sides
radius: Distance from center to a vertex
angle: Angle of rotation for ngon
label: A character, angle, or label object
side_length: Distance of each side (can be used instead of radius to set size of ngon)
apothem: Distance from center to a side's midpoint (can be used instead of the radius to set size of ngon)
vertex_radius: A numeric or unit vector of length one, specifying the corner radius
alpha: numeric value for alpha transparency
color: character string for color
fill: character string for fill color
linewidth: Width of lines
linetype: type of lines
style: Gets and sets the styles associated with ob_ngon
x: x-coordinate of center point. If specified, overrides x-coordinate of @center.
y: x-coordinate of center point. If specified, overrides y-coordinate of @center.
id: character string to identify object
...: <dynamic-dots> properties passed to style

Value

ob_ngon object

Additional properties

@aesthetics: A list of information about the object's aesthetic properties
@area: The area of the ngons in the ob_ngon object
@bounding_box: a rectangle that contains all the ngons
@circumscribed: Returns the circle that circumscribes the ngon.
@inscribed: Returns the circle that inscribes the ngon.
@length: The number of ngons in the ob_ngon object
@normal_at: A function that finds a point that is perpendicular from the ngon and at a specified distance
@perimeter: The length of the sum of all the side segments
@point_at: A function that finds a point on the ngon at the specified angle.
@segments: side segments of the regular polygon
@tangent_at: A function that finds the tangent line at the specified angle.
@tibble: Gets a tibble (data.frame) containing parameters and styles used by ggforce::geom_shape.
@vertices: points on the regular polygon
@east: right point (ob_point)
@north: top point (ob_point)
@west: left point (ob_point)
@south: top point (ob_point)
@northeast: upper right point (ob_point)
@northwest: upper left point (ob_point)
@southwest: lower left point (ob_point)
@southeast: lower right point (ob_point)

Examples

ggdiagram() +
  ob_ngon(center = ob_point(x = 3:8, y = 0),
          n = 3:8,
          radius = .4)


# Size can be set with side_length instead of radius
ggdiagram() +
  ob_ngon(center = ob_point(x = 3:8, y = 0),
          n = 3:8,
          side_length = .4)


# Size can be set with apothem (distance from center to side's midpoint)

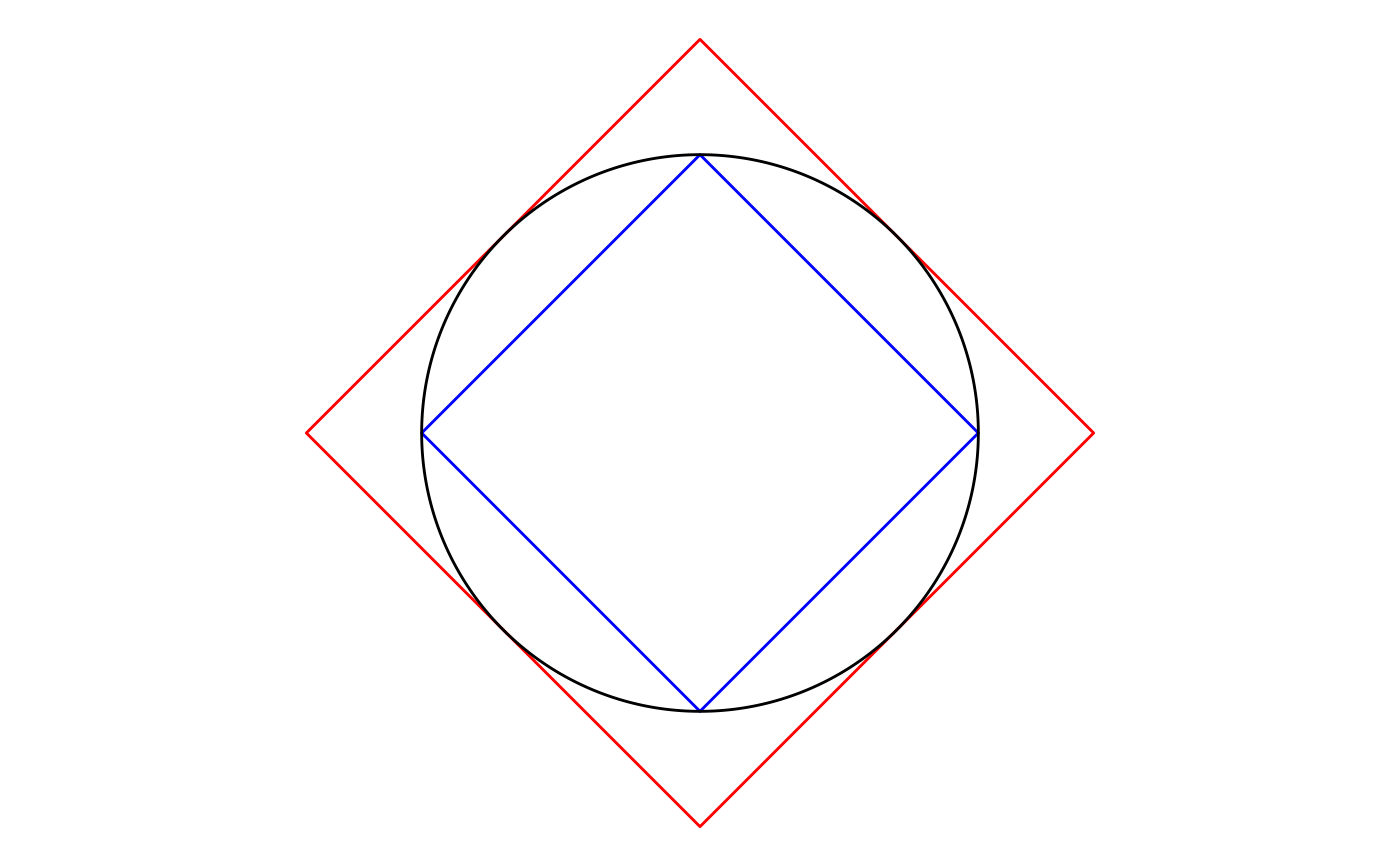

ggdiagram() +
  ob_ngon(n = 4,
          radius = 1,
          fill = NA,
          color = "blue") +
  ob_ngon(n = 4,
          apothem = 1,
          fill = NA,
          color = "red") +
  ob_circle(radius = 1)


# Getting the circles that inscribe and circumscribe the ngon

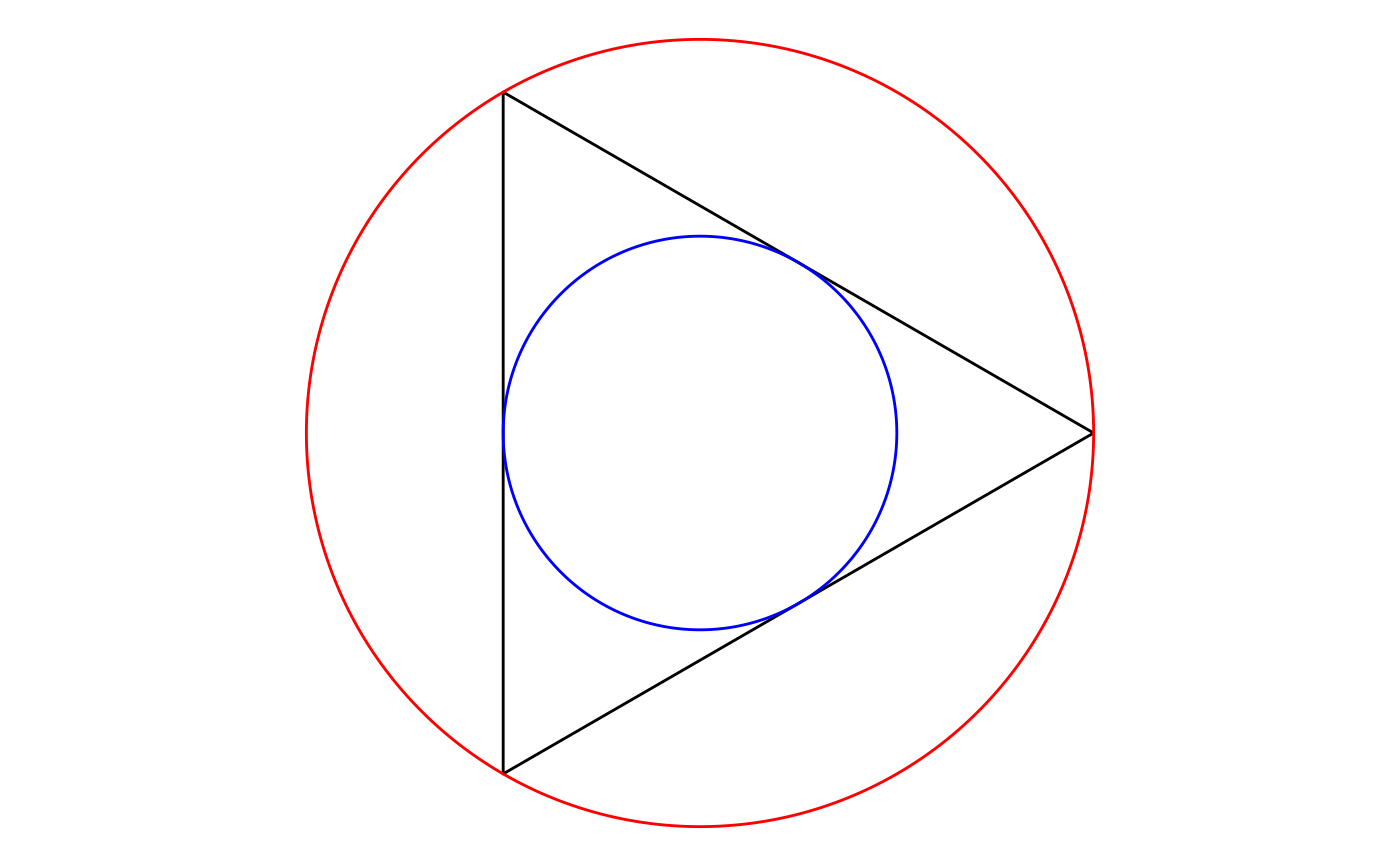

ggdiagram() +
  {x <- ob_ngon(fill = NA, color = "black")} +
  x@inscribed |> set_props(color = "blue") +
  x@circumscribed |> set_props(color = "red")
